THE SAFEST FRAMING ENVIRONMENT IN THE CONSTRUCTION INDUSTRY.
NO CUTS. NO CLAIMS. NO EXTRA COST.
THE EDGE™ STUDS ARE SPECIFIED IN UL DESIGNS U419, V438, V489, V498, W433, W440

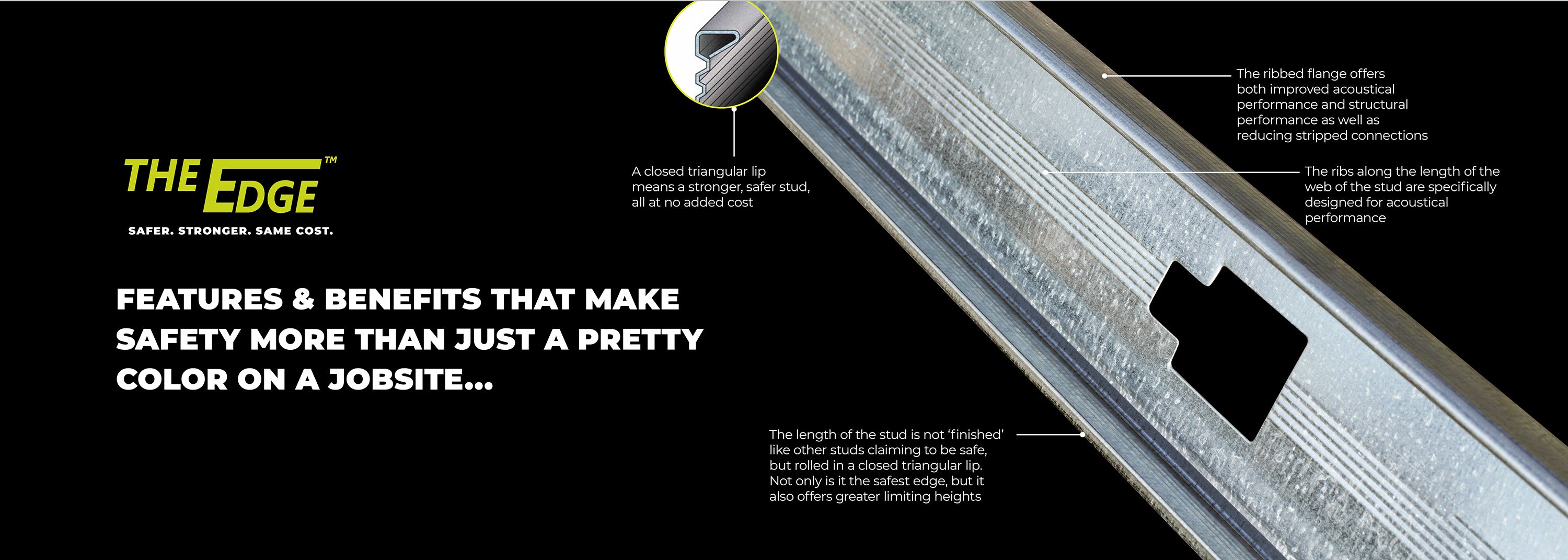

The EDGE™ by Super Stud Building Products is the safest drywall system on the market. Its patented rolled triangular lip eliminates sharp edges along the length of the stud. Even our EDGE™ track incorporates a hemmed lip for added safety.
By design, The EDGE™ also delivers increased wall heights and improved acoustical performance. Compare for yourself and see why The EDGE™ increases productivity and reduces time and cost. Not every stud is created equal, let Super Stud give you The EDGE™.
The EDGE™ is the Safest and Strongest Choice in Steel Framing. See Why
Member Sizing
Stud Web Sizes:
1-5/8”, 2-1/2”, 3-5/8”, 4”, 6”
Knockout Sizes:
1-5/8” stud = 3/4” x 1-1/2”
2-1/2”, 3-5/8”, 4”, 6” = 1-1/2” x 2-1/2”
Flange:
1-1/4”
Return lip:
0.350”
Track Web Sizing:
1- 5/8”, 2-1/2”, 3-5/8”, 4”, 6”
Flange:
1 – 1/4”, 3/16”
Order The EDGE™
Physical Properties
| Stud | Track | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | Member Designation | Design Thickness (Inches) | Minimum Thickness (Inches) | Yield | Coating | Member Designation | Design Thickness (Inches) | Minimum Thickness (Inches) | Yield | Coating |
| The Edge™ 25 | EDS125-15 | 0.0153 | 0.0145 | 55 KSI | G40 ² ³ | T125-15 | 0.0153 | 0.0145 | 40 KSI | G40 ² ³ |
| The Edge™ Performance 20 | EDS125-19 | 0.0188 | 0.0179 | 55 KSI | G40 ² ³ | T125-19 | 0.0188 | 0.0179 | 40 KSI | G40 ² ³ |
| The Edge™ Super 20 | EDS25-23 | 0.0232 | 0.0220 | 33 KSI | G40 ² ³ | T125-23 | 0.0232 | 0.0220 | 40 KSI | G40 ² ³ |
| DW 30¹ | S125-30 | 0.0312 | 0.0296 | 33 KSI | G40 ² ³ | T125-30 | 0.0312 | 0.0296 | 33 KSI | G40 ² ³ |
| DW 33¹ | S125-33 | 0.0345 | 0.0329 | 33 KSI | G40 ² ³ | T125-33 | 0.0345 | 0.0329 | 33 KSI | G40 ² ³ |
Notes
- 1 - DW 30 and DW 33 are special order products and are traditional C-shaped studs.
- 2 - Or equivalent per ASTM C645.
- 3 - G60 and G90 are available by special order.
- 4 - Mils are rounded to the nearest thousandth.
