SuperJoist and SuperMaxx Joist Comparison
Competes with Existing Open Web Joists

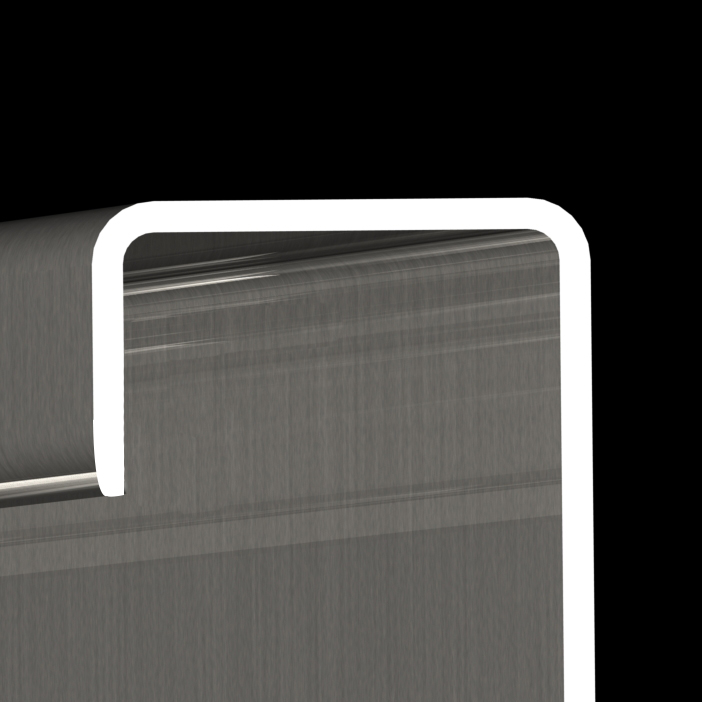

INDICATES A SINGLE RETURN FLANGE
Product Designator: SJ

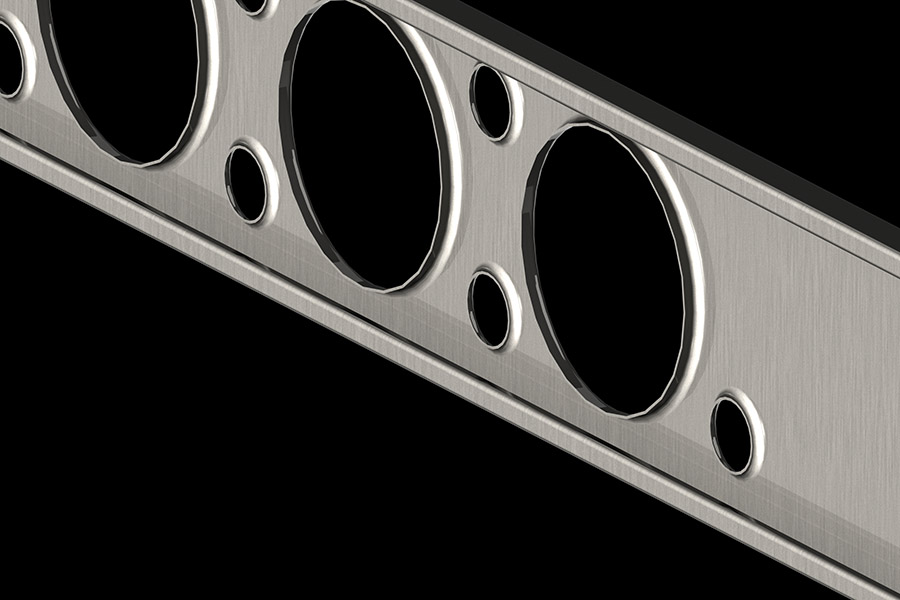

Open Web with Stiffened Holes

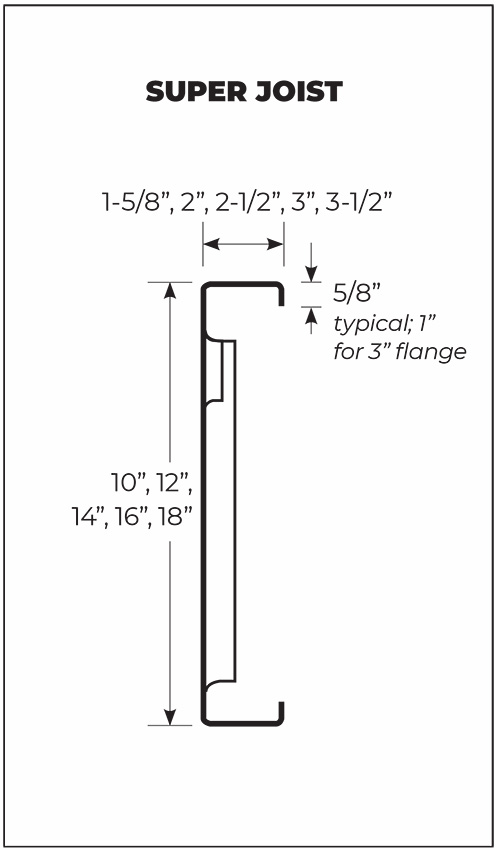

Super Joist Member Sizing
Available Thicknesses:
33 mil (20 Ga.)
43 mil (18 Ga.)
54 mil (16 Ga.)
68 mil (14 Ga.)
97 mil (12 Ga.)
118 mil (10 Ga.)
Web Depths:
10”, 12”, 14”, 16”, 18”
Flange Width:
1-5/8”, 2”, 2-1/2”, 3”, 3-1/2”
Premium Open Web Joist

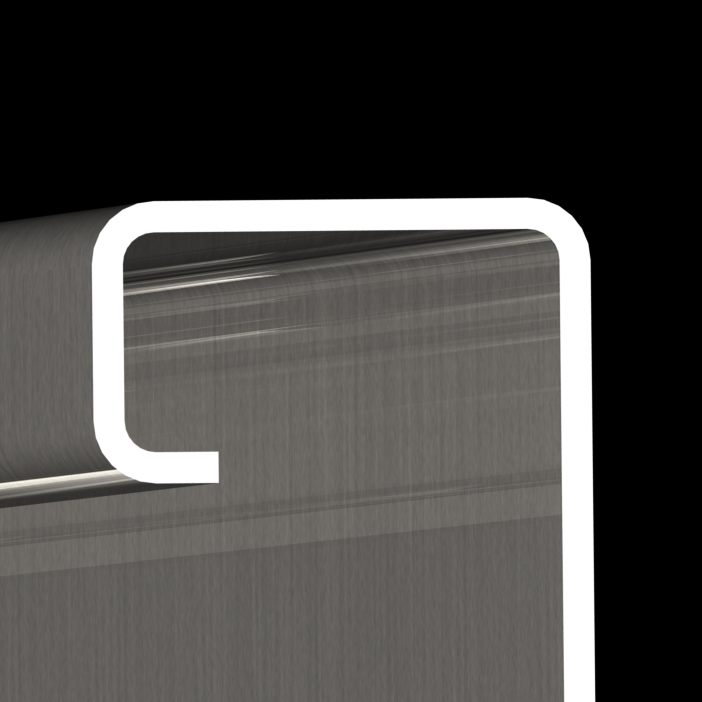

INDICATES A DOUBLE RETURN FLANGE
FOR ADDED STRENGTH, STABILITY, AND STIFFNESS
Product Designator: SMX

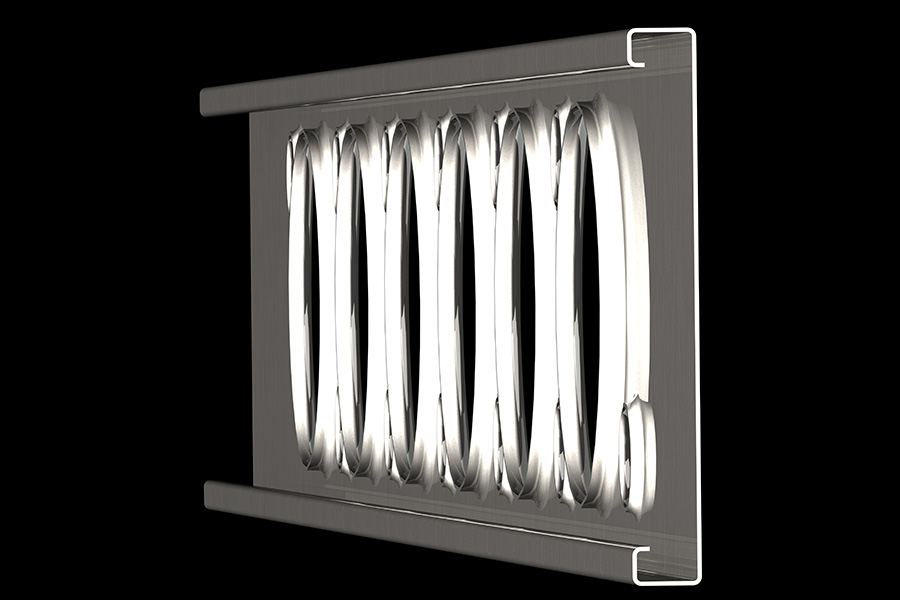

Open Web with Stiffened Holes

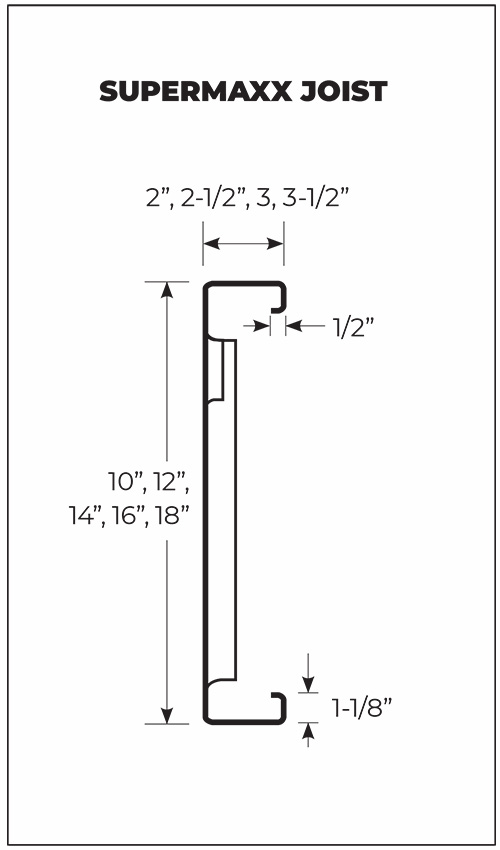

SuperMAXX Joist Member Sizing
Available Thicknesses:
33 mil (20 Ga.)
43 mil (18 Ga.)
54 mil (16 Ga.)
68 mil (14 Ga.)
97 mil (12 Ga.)
118 mil (10 Ga.)
Web Depths:
10”, 12”, 14”, 16”, 18”
Flange Width:
2”, 2-1/2”, 3”, 3-1/2”
