Download Submittal for 1-1/4" Flexible Vinyl Corner Bead

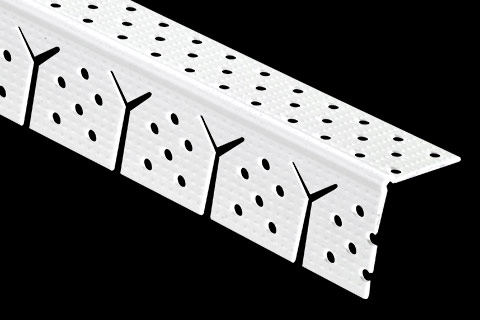

gripSTIK® MAX-Flex® Archway is designed for maximum flexibility as this unique design allows it to conform to almost any radius. MAX-Flex® has “Y”cut slits on the notched flanges allowing maximum flexibility without kinking. Installs easily with nails, staples or spray adhesive adhesion. The specially knurled and perforated flanges allow excellent joint compound. No mud additives or priming are needed prior to painting. Phillips bead is dent resistant, won’t rust in high humidity areas and easy to cut with shears, knife
or fine-tooth hacksaw.
Product Data and Ordering Information:
Material: Extruded rigid vinyl; contains no asbestos
Dimensions: 1-1/4” leg x 1-1/4” leg
Part Number: CBAVYL
Length: 10'
Special Notes:
LEED Credits for Recycled Content
MR2 – The steel and vinyl used in Phillips Manufacturing products is 100% recyclable.
MR4 – Phillips Manufacturing steel and vinyl products have a minimum of:
Total recycled content: 30%
Post-consumer recycled content: 25%
Pre-consumer recycled content: 5%
ASTM and Code Standards:
Phillips gripSTIK® MAX-Flex® 3/4" Bullnose Archway meets or exceeds:
• ASTM C 1047 Standard Specification for Accessories for GypsumWallboard
• ASTM D 1784 Standard Specification for Rigid Poly (Vinyl Chloride) (PVC)
• Compounds and Chlorinated Poly (Vinyl Chloride) (CPVC) Compounds
• ASTM D 3678 Standard Specification for Rigid Poly (Vinyl Chloride) (PVC)
Interior- Profile Extrusions
SDS and other technical information available at www.phillipsmfg.com
